Track Braids

We offer special tin-coated braids for a wide variety of requirements, e.g. Slot-Car tracks in scale 1:32 or 1:24, with or without a magnetic effect. These braids have been approved since several years for their application on Slot-Car tracks.

> costs estimate <

Sample card with 6 track braids

Trackbraid sample card with 6 braids
Price: 10,00 € +VAT

Sample card with 6 track braids

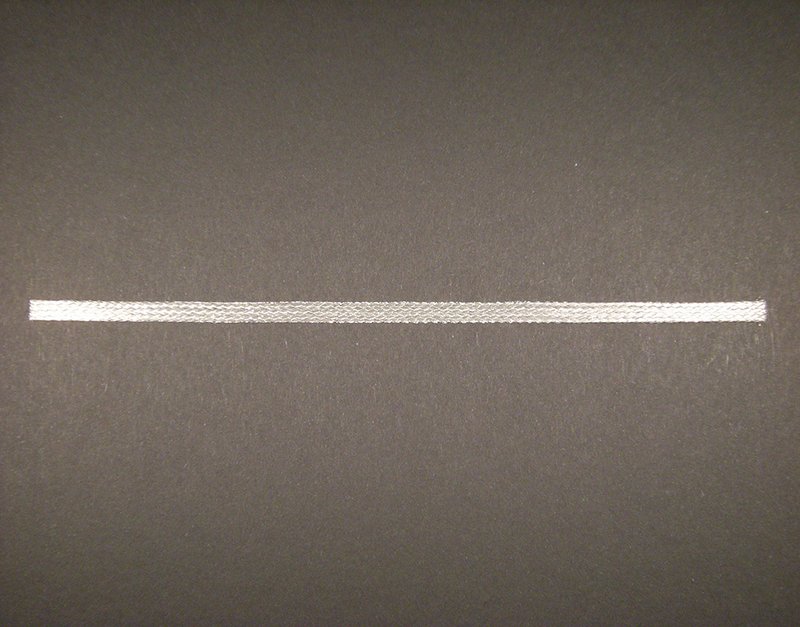

1,30 mm² tin-plated

This braid is exclusively suitable for Slot-Cars in scale of 1:32.

Measure:approx. 4,20 mm x 0,50 mm
Width of the slot:3,00 mm > cutter diameter: 14,00 mm
Price:1,40 €/m + VAT
1,30 mm² tin-plated

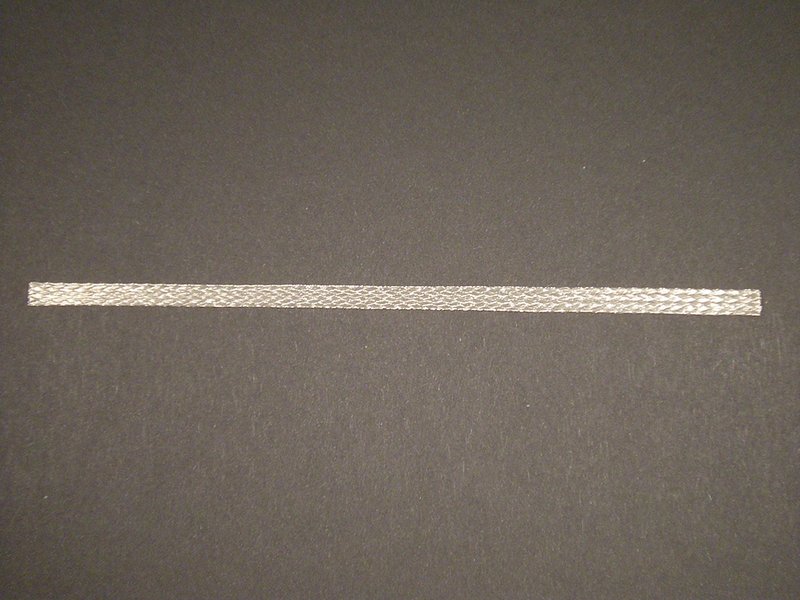

2,10 mm² tin-plated

This braid is suitable for Slot-Cars in scale of 1:24.

Measure:approx. 5,50 mm x 0,65 mm
Width of the slot:3,00 mm > cutter diameter: 16,00 to 16,50 mm
4,00 mm > cutter diameter: 17,00 mm
Price:1,30 €/m + VAT
2,10 mm² tin-plated
4,00 mm² tin-plated

This braid is suitable both for racing-centers and tracks of Slot-Car-Associations. There is a high flow of electricity possible!

Measure:approx. 7,00 mm x 1,20 mm
Width of the slot:3,00 mm > cutter diameter: 19,00 mm
4,00 mm > cutter diameter: 20,00 mm
Price:2,30 €/m + VAT
4,00 mm² tin-plated

Trackbraid nickel-plated

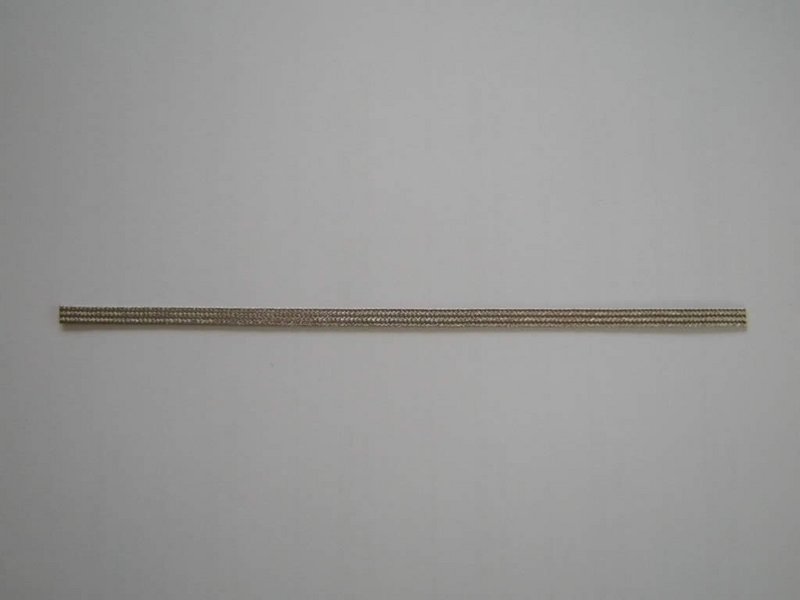

2,10 mm² nickel-plated

only a small remaining length available

This braid is suitable for slot-cars in scale 1:24

Measure:approx. 5,50 mm x 0,60 mm
Width of the slot:3,00 mm > cutter diameter: 16,00 mm
Price:2,50 €/m + VAT
Please consider that:Nickel may cause allergic reactions.
better properties:electrical resistance and corrosion resistance.
magnetic properties:nickel is ferromagnetic



2,10 mm² nickel-plated

Track Braids with magnetic effect

1,50 mm² stainless steel

100% magnetic effect

This braid is exclusively suitable for Slot-Cars in scale of 1:32 with magnetic effect towards the track braid.

Measure:approx. 4,20 mm x 0,65 mm
Width of the slot:3,00 mm > cutter diameter: 13,00 mm
Price:2,05 €/m + VAT
1,50 mm² stainless steel

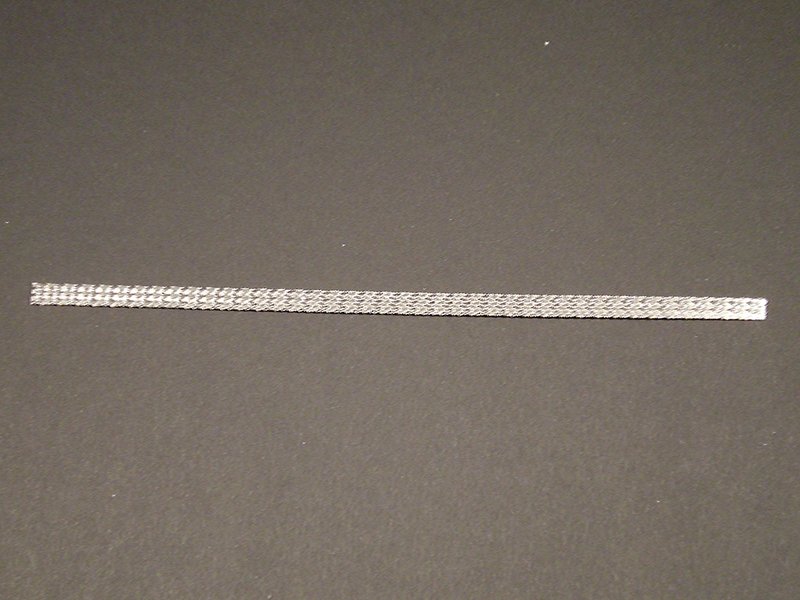

2,00 mm² tin-plated/stainless steel

approx. 50% magnetic effect

This braid is suitable for Slot-Cars in scale of 1:32 and 1:24 with or without magnetic effect towards the track braid. Recommended width of the slot for cars in scale of 1:32 is 3,00 mm.

Measure:approx. 5,00 mm x 0,70 mm
Width of the slot:3,00 mm > cutter diameter: 15,00 mm
Price:1,95 €/m + VAT
2,00 mm² tin-plated/stainless steel
Plastic Coil
measure: height: 160 mm
diameter: 160 mm
capacity: 100 m to 200 m depending on the cross-section
price: 2,50 € + VAT
Milling cutter for adding the braid on the speed track

We can offer milling cutters in different types for every braid and for slot widths 3.00 or 4.00 mm for milling on your speed track without any problems.

For a slot width with 3.00 mm we can offer guiding pins with diameter 2.90 mm and also with diameter 2.80 mm.

For a slot width with 4.00 mm we can offer guiding pins with diameter 3.90 mm and also with diameter 3.80 mm.

During the milling of your slot there is the possibility that your milling cutter will have a less diameter than at the beginning. For this reason we offer to every milling cutter another guiding pin which has a tenth less diameter.

If you want to have another slot width than 3.00 or 4.00 mm, please feel free to contact us. We will try to help you on your special case.

Our milling cutters have a shank diameter of 8 mm.

The following milling cutter are available.

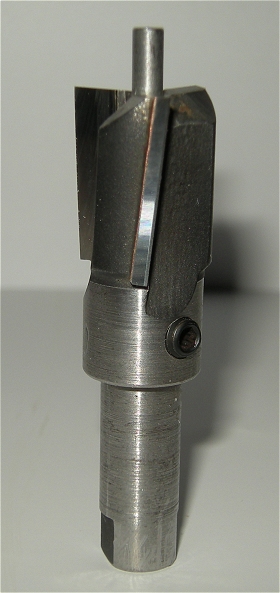

14,00 mm                      guiding pins:                      2,90 mm

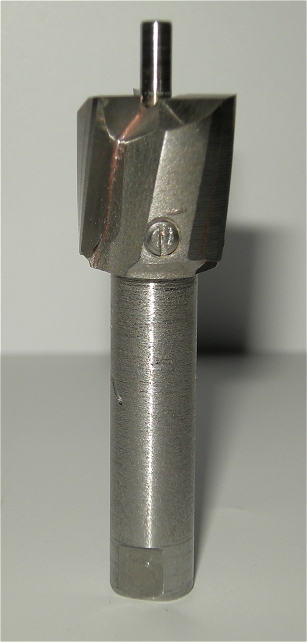

14,50 mm   guiding pins:   2,90 mm and 3,90 mm

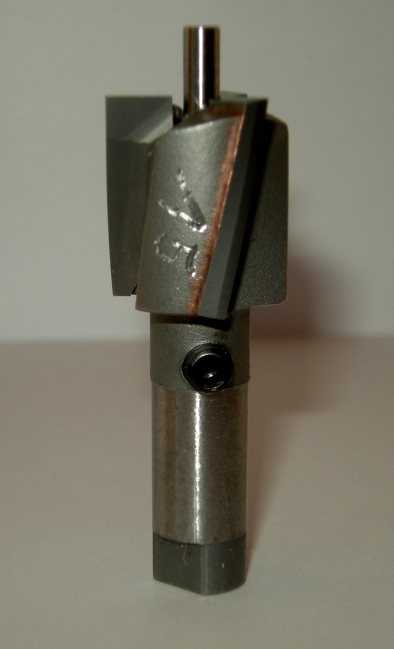

15,00 mm   guiding pins:   2,90 mm and 3,90 mm

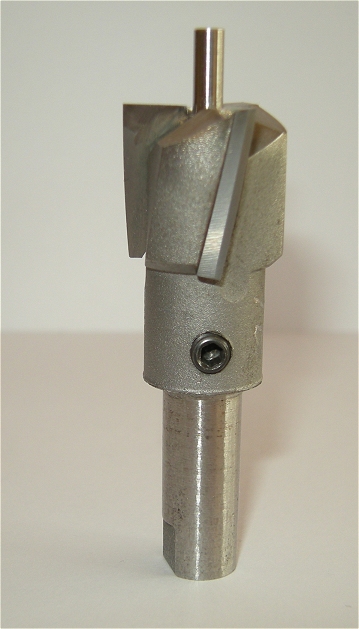

16,00 mm   guiding pins:   2,90 mm and 3,90 mm

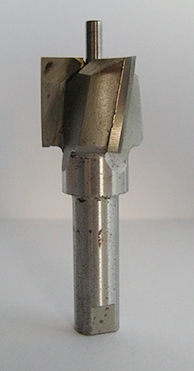

18,00 mm   guiding pins:   2,90 mm and 3,90 mm
19,00 mm   guiding pins:   2,90 mm and 3,90 mm
Milling Cutter
Re-sharpening costs milling cutter: 35,00 € + VAT
Deposit milling cutter up to 15,00 mm:    275,00 €
Deposit milling cutter from 16,00 mm:    350,00 €
Rental period: 2 to max. 3 months

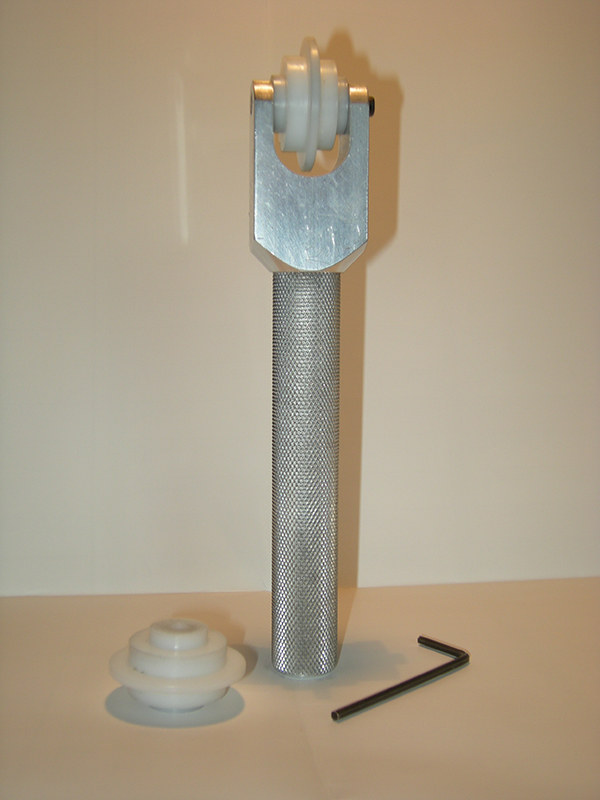

Pressing tool

For pressing braids onto the track you can rent a tool that is compatible with track braid and slotwidth

Deposit pressing tool: 130,00 €
Rental period pressing tool: 2 to max. 3 months

Renting milling cutter and pressing tool only when buying track braid
